AZDEN

PRO-XR - 2.4GHz DIG WIRELESS MIC/REDUNDANCY

PRO-XR - 2.4GHz DIG WIRELESS MIC/REDUNDANCY

SKU:67181

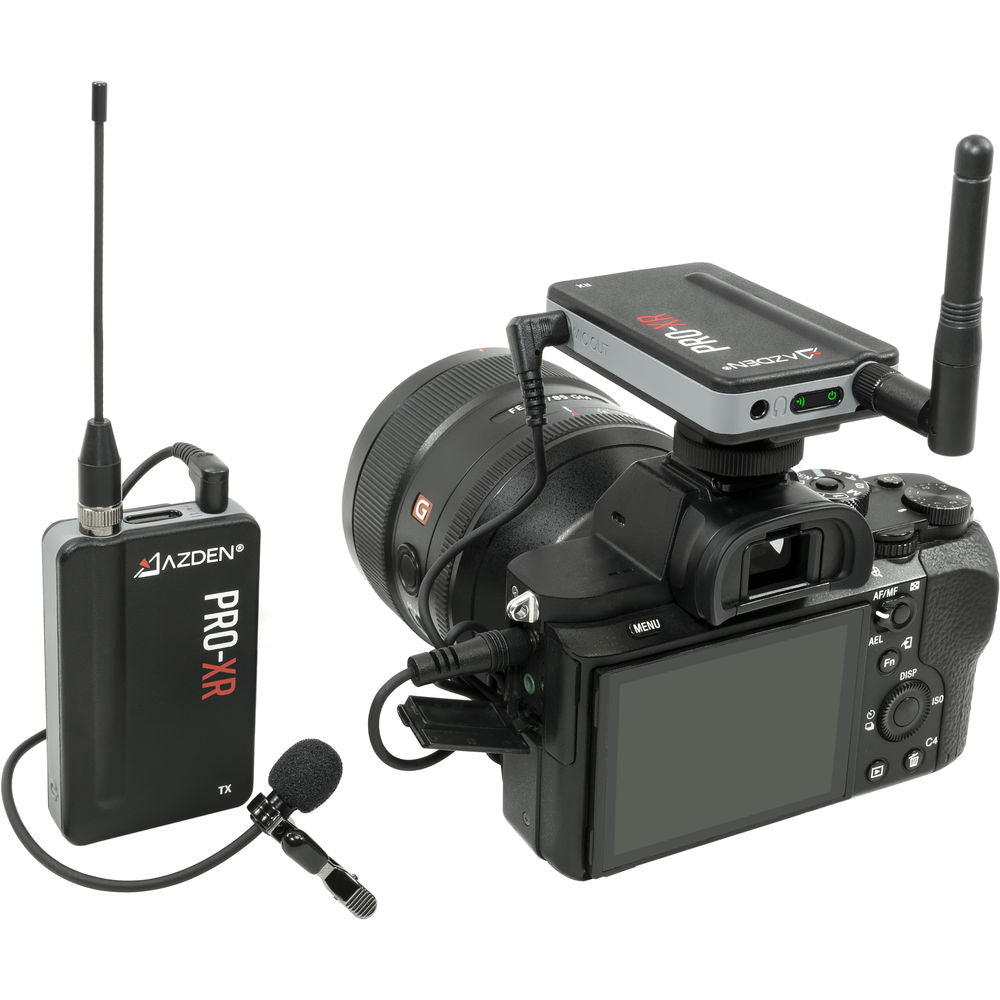

NEW AZDEN PRO-XR 2.4GHz Digital Wireless Mic System with Signal Redundancy

SPECS:
SYSTEM
Wireless Transmission Digital 2.4 GHz
Number of RF Channels 76
Included Transmitters 1 x Bodypack with Microphone
Diversity Frequency
Max Operating Range 500' / 152.4 m (Line of Sight)
Latency 4.5 ms
Dynamic Range 90 dB (Mic Input)
87 dB (Instrument Input)
Encryption None

RECEIVER
Form Factor Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 1 x 1/4 Wave External
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level 1.5 dBV (Max)
USB/Lightning Connectivity 1 x Mini-USB (Bus Power, Charging)
Impedance 1/8" / 3.5 mm Output:
2 Kilohms
Headphone Output:
10 Kilohms
Power Requirements Battery or Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 1200 mAh
Battery Charging Time 150 Minutes
Approx. Battery Life 20 Hours
Battery Cycle Count Up to 500 Cycles
Dimensions 1.9 x 3.1 x 0.6" / 4.8 x 7.9 x 1.4 cm
Weight 2.7 oz / 76 g

TRANSMITTER
Form Factor Bodypack with Microphone
RF Output Power 20 / 50 / 100 mW
Audio I/O 2 x 1/8" / 3.5 mm TRS Female Unbalanced Input
Audio Input Level 22 dBV (Mic Level)
2 dBV (Line Level)
Auto-Level Control No
Frequency Response 60 Hz to 20 kHz (Mic)
30 Hz to 20 kHz (Line)
Antenna 1 x 1/4 Wave External
Power Requirements Battery or Bus Power (USB)
Battery Type 1 x Built-In Rechargeable (Included)
Internal Battery Capacity 1200 mAh
Battery Charging Time 150 Minutes
Approx. Battery Life Low:
14 Hours
Med.:
12 Hours
High:
10 Hours
Battery Cycle Count Up to 500 Cycles
USB/Lightning Connectivity 1 x Mini-USB (Bus Power, Charging)
Dimensions 1.9 x 3.1 x 0.6" / 4.8 x 7.9 x 1.4 cm
Weight 2.3 oz / 65 g

MICROPHONE
Form Factor Lavalier
Sound Field Mono
Operating Principle Pressure Operated
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
Impedance 2.2 Kilohms
Sensitivity -38 dB
Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced
Cable Length 3.94' / 1.2 m
Operating Voltage 1 to 10 V

GENERAL
Packaging Info
Package Weight 0.965 lb
Box Dimensions (LxWxH) 7.5 x 5.7 x 2.75"

(CALL FOR UP-TO-DATE PRICE)

Regular price $ 249.00
Regular price Sale price $ 249.00
Sale Sold out

Low stock: 3 left

View full details
