ITEM #67684



Quantity Available: 3

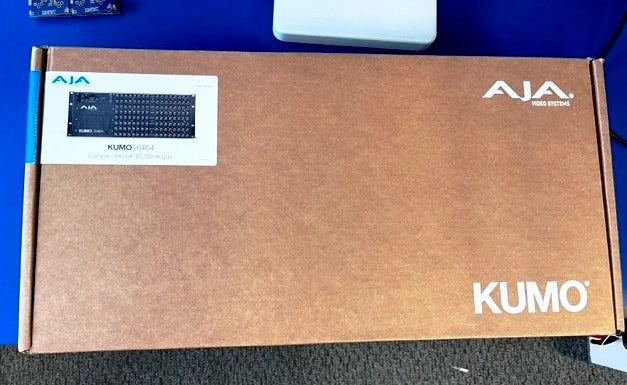

Never Used/Open Box AJA KUMO 6464 Compact 64x64 3G-SDI Router - With Limited Factory Warranty

The KUMO 6464 Compact 64x64 3G-SDI Router from AJA offers 64 inputs and 64 outputs of 3G-SDI video and audio, while maintaining a slim and compact 4 RU profile. The router has elegant and powerful web-based network control, and supports any SDI-based signal up to 3G-SDI, including HD and even 4K/Ultra HD signals. Built with high-quality standards, the KUMO 6464 Router is ideal for any installation where a balance of size and routing capacity are critical.


  • Compact SDI router provides powerful signal control and supports full broadcast specifications over SD-SDI, HD-SDI, and 3G-SDI, with quality that exceeds SMPTE specifications

  • Compact 4 RU size is just a 1.5" deep, making it a suitable fit for any broadcast, production or post-production environment, from mobile sports trucks and edit suites to corporate video installations or live theatrical A/V rigs

  • Offers 64 3G-SDI inputs and outputs


  • KUMO's powerful crosspoint routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers

  • Can be used as a distribution amplifier by routing a single input to all outputs

  • Can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for dual-link, 4K, and Ultra HD workflows, which allows for seamless routing of uncompressed or Raw 4K and Ultra HD signals throughout a production or post facility

  • You can switch the router back to HD/SD operation as needed, giving you the flexibility to route virtually any format in your facility


  • Designed for critical broadcast, production, and post-production environments

  • Use of premium components coupled with dual redundant power supply ensures high signal quality
    and maximum uptime, even in the unexpected event of a power supply failure


  • Running embedded Linux, the KUMO router is network-ready and supports powerful HTTP control and monitoring via a web browser, without the need for additional software

  • You can activate auto-detect Bonjour/Zeroconf protocols that enable automatic network configuration by connecting the router to your network or a computer

  • Standard network configuration allows access to each router via its default IP address

  • Once connected to KUMO using a web browser, you can configure the full TCP/IP settings, select and name KUMO routers, name sources and destinations, and perform all operational functions

  • Easily integrates with existing infrastructure utilizing the industry standard Grass Valley Native Protocol over RS-422 or even Ethernet

  • Ethernet network connectivity also allows you to control all KUMO routers from any web browser on a network connected device, ensuring you have the control you need from any location
