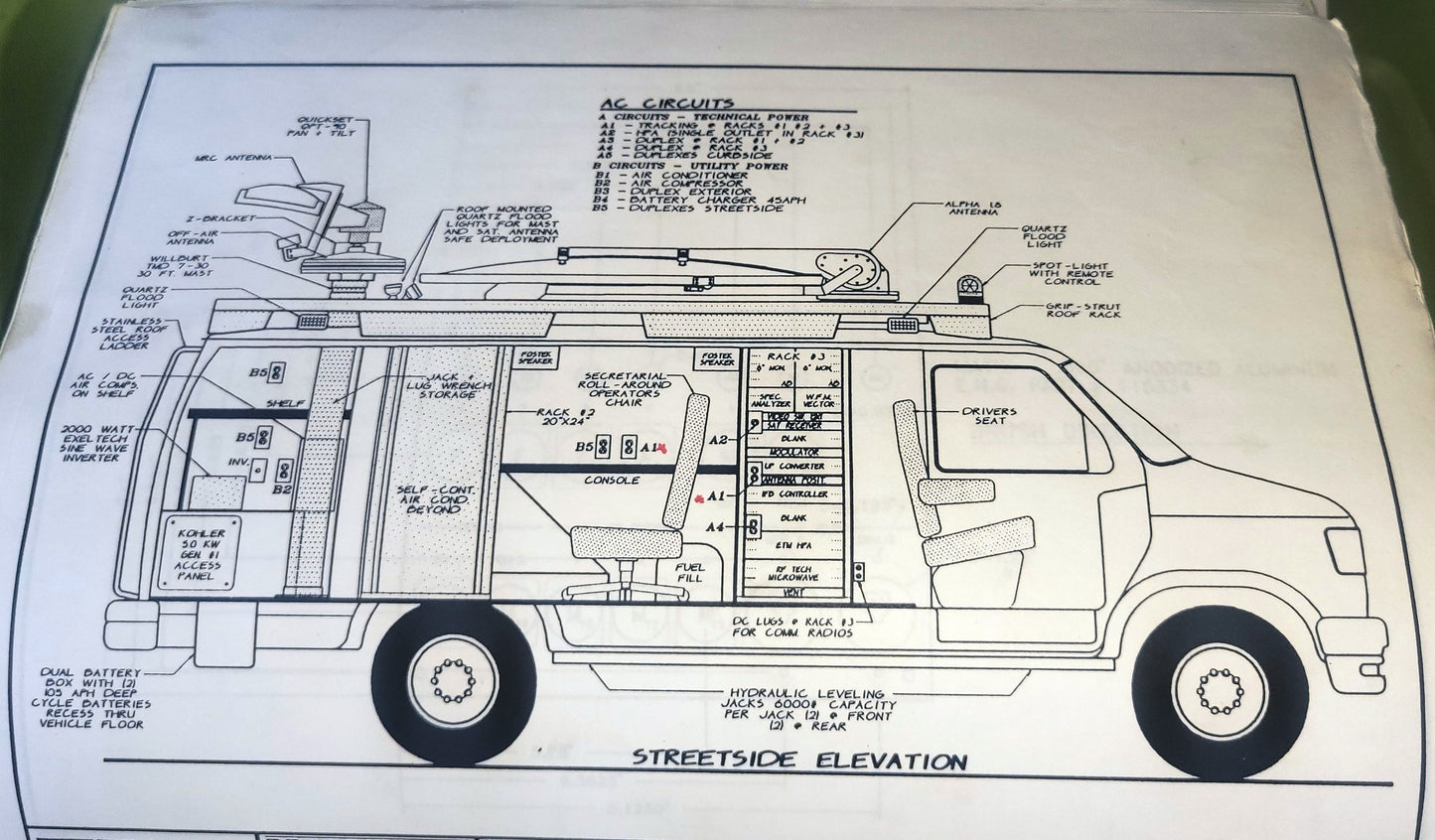

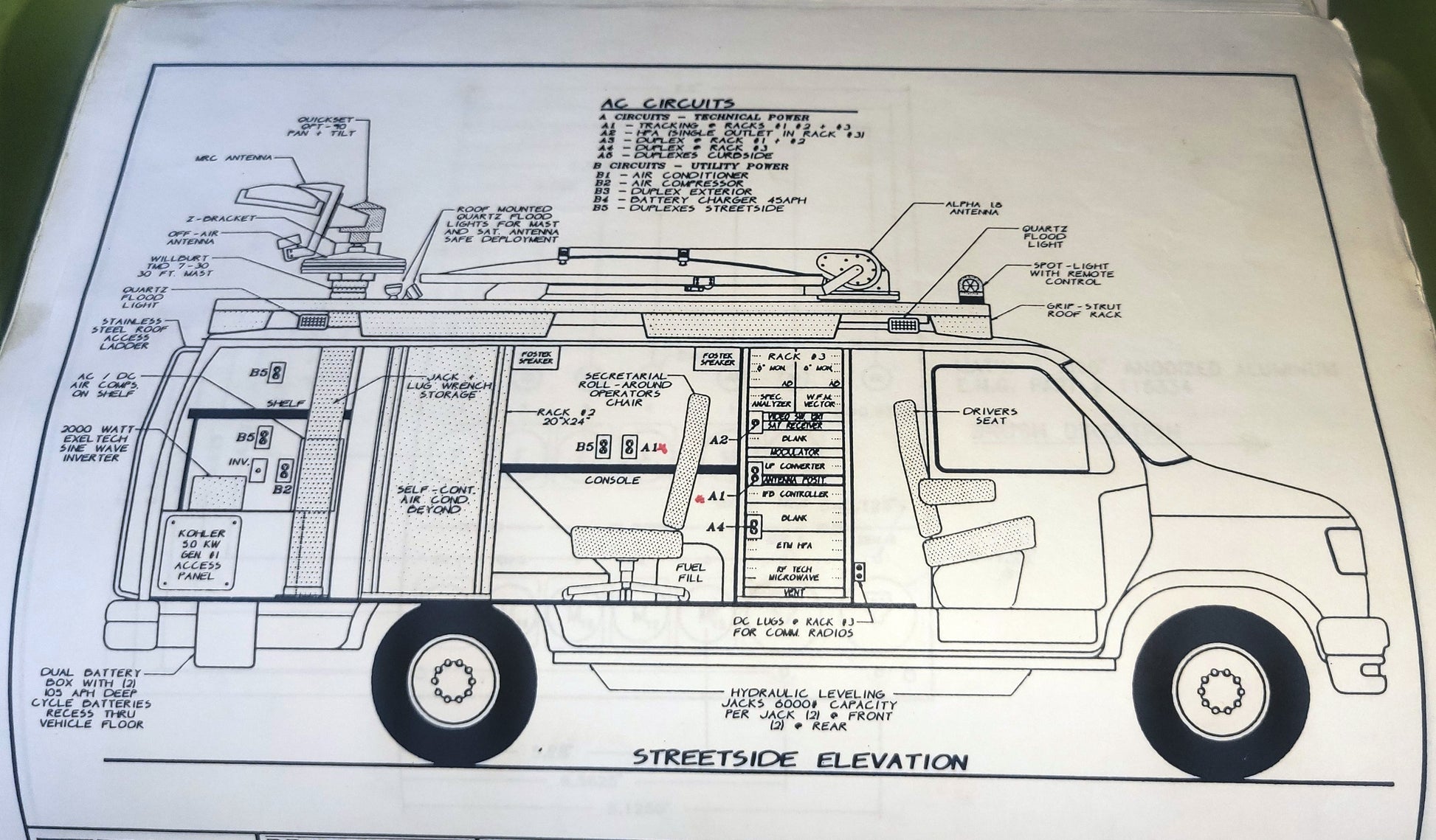

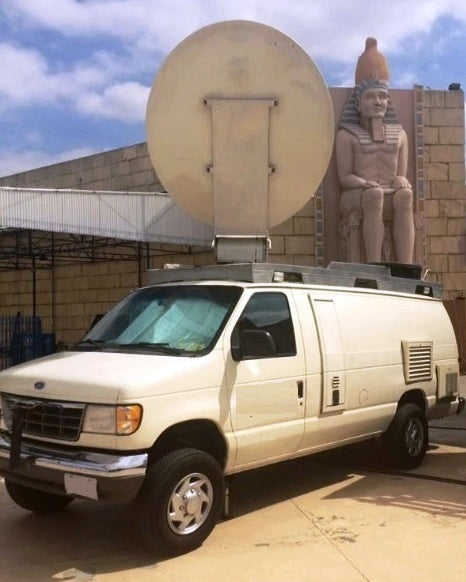

KU-BAND VAN - TURNKEY EQUIPPED, 2 GENERATORS

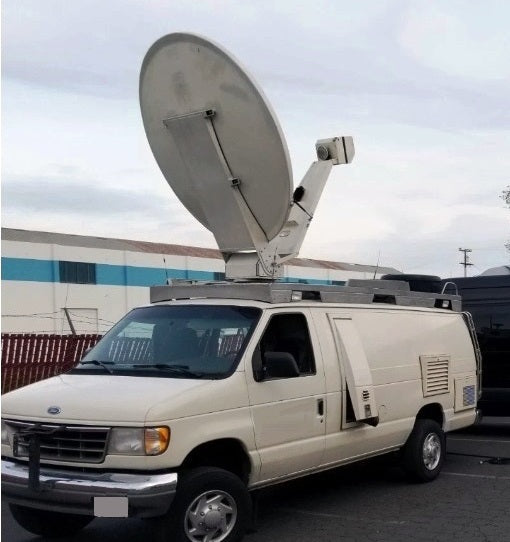

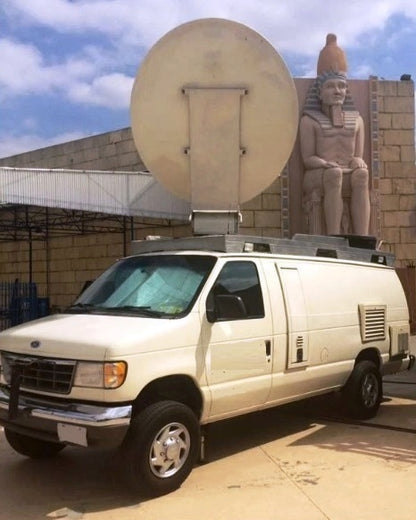

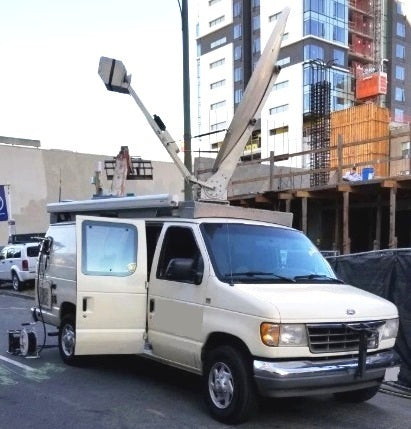

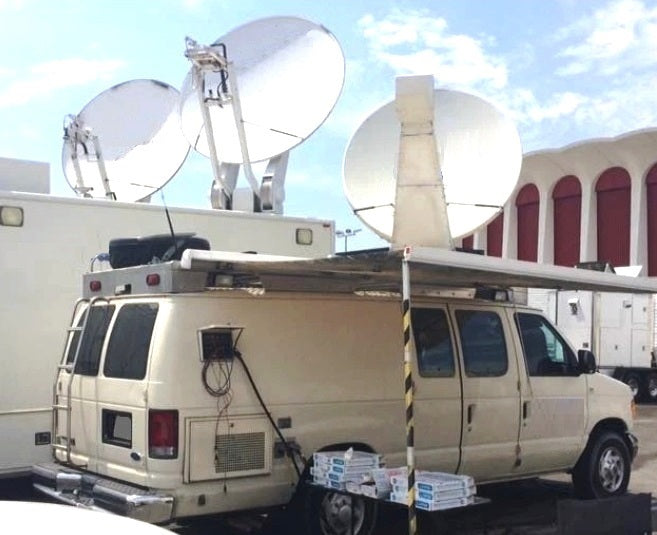

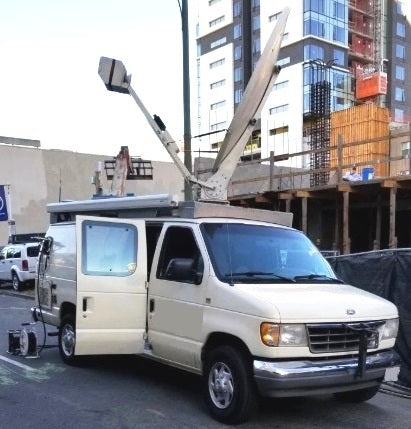

1996 FORD E350 TURNKEY ENG/SNG KU-BAND UPLINK VAN

• Approx 261K miles, V8 engine

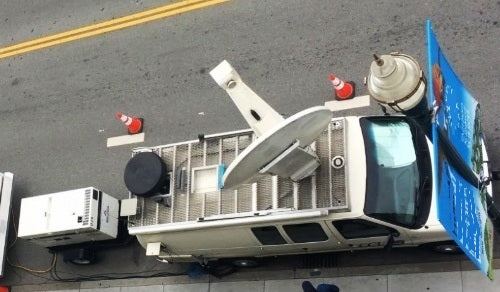

• Newer 1.5m Vertex Hexagon KU-band antenna w/ jog controller
• 2x Onan Emerald Plus 6.5kw generators for redundant power
  (Gen. 1: 3972 hrs, Gen. 2: 5047 hrs)
• Shore power capable

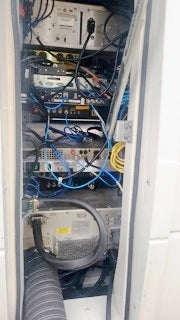

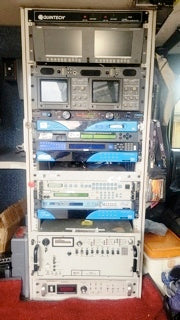

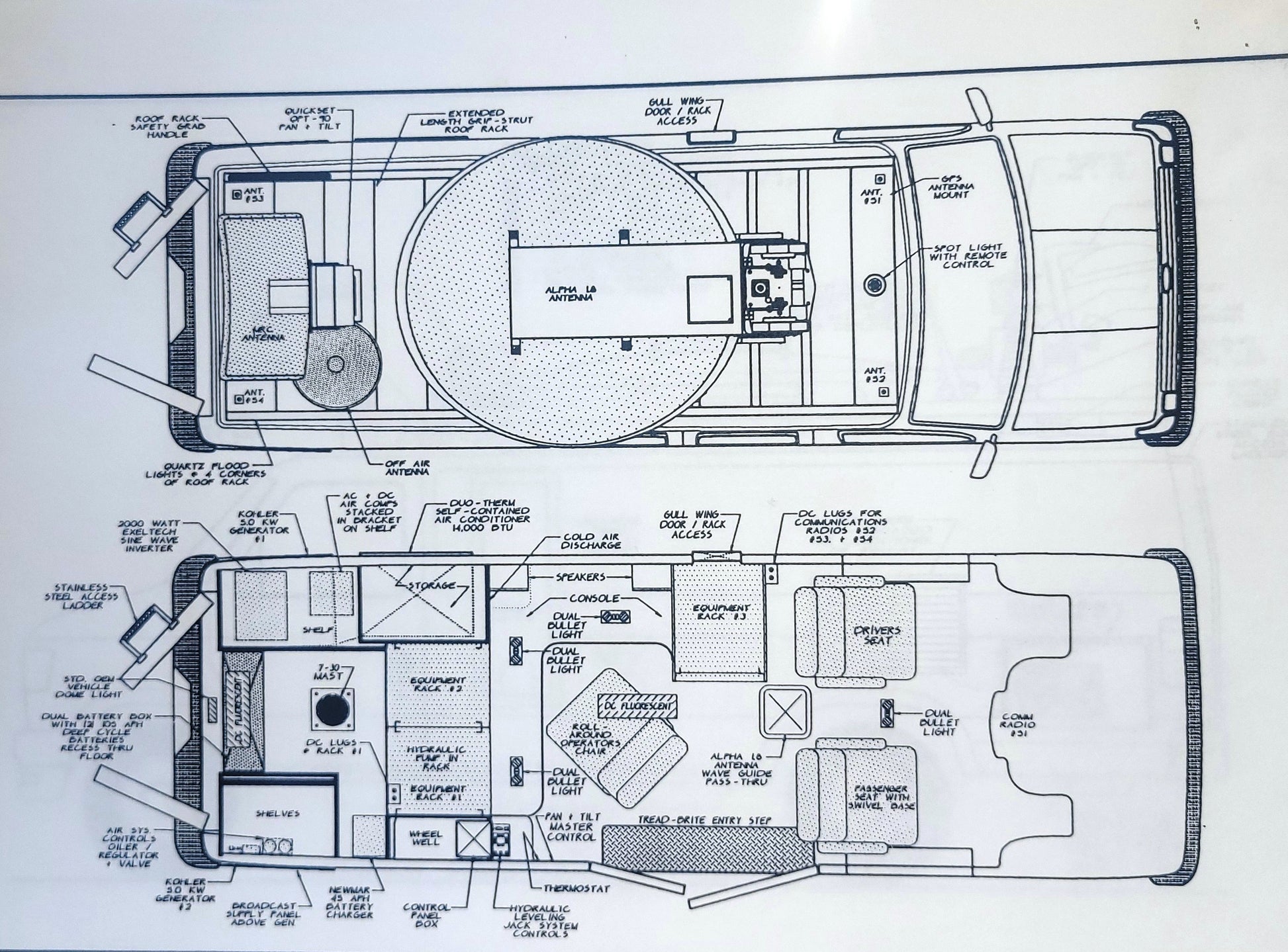

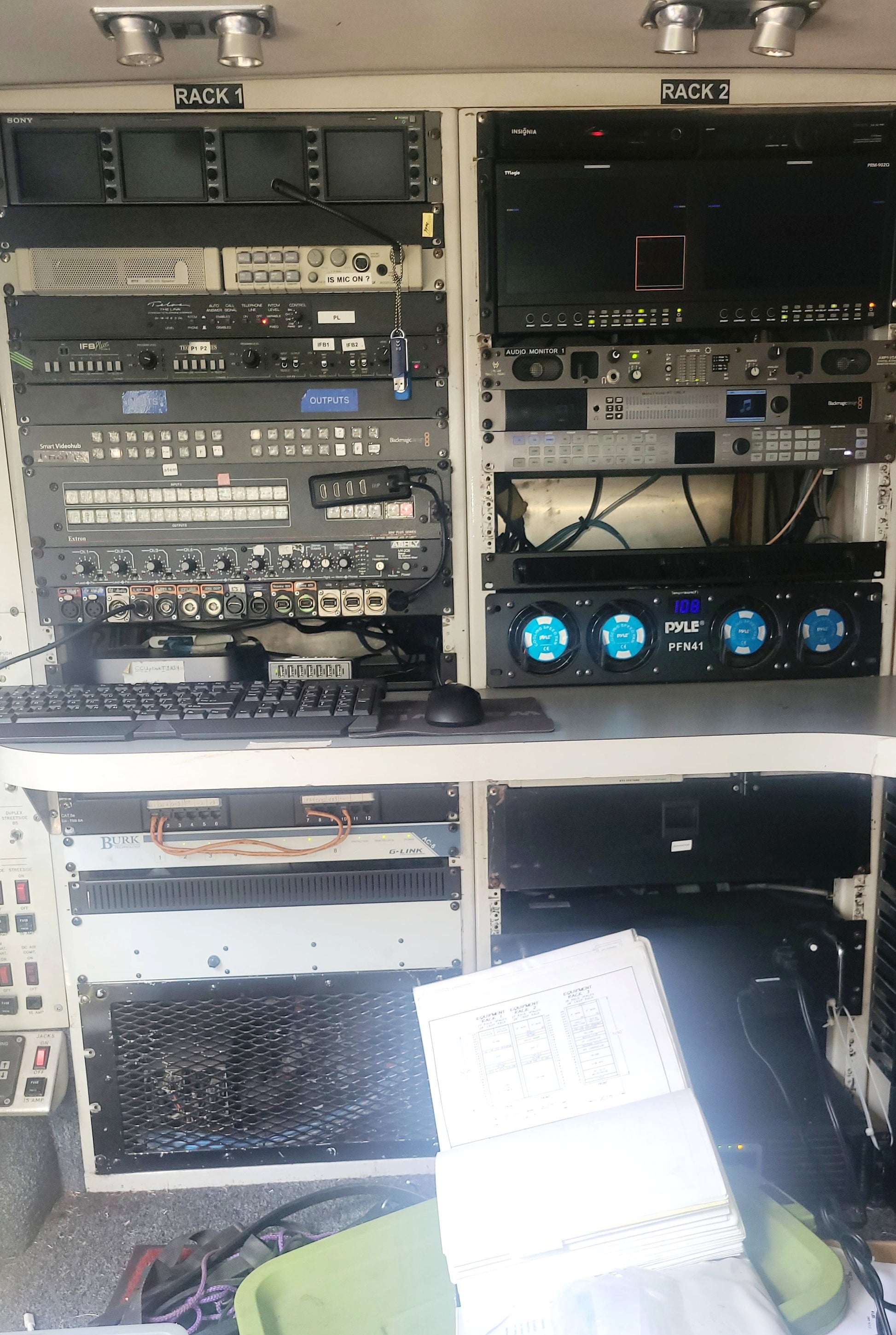

• Built-in rack systems & routing infrastructure
• Multiple monitoring stations + production workspace
• Satellite communication options onboard
• Routing, encoding, and transmission hardware (some legacy
  gear included)

EQUIPMENT:

• Vertex 1.5m hex dish (tuned in 2024)
• VertexRSI 7031B antenna jog controller
• 2x Tektronix 1705a spectrum analyzer
• Adtec EN-91 mpeg 4 encoder
• 2x Scopus UC-250if2 modulator x2
• Scopus UC 450 e+ mpeg 4 hd encoder
• 2x MITEQ U9696-3-l up-converters
• 2x Scopus uc-ird+
• Tanberg RX1290 multi-format decoder
• MCL 10999 300-Watt Ku TWTA
• TV Logic PRM-902Q 7" dual monitors
• Wohler RM-3270-HD dual 7" LCD
• Blackmagic audio monitor
• Blackmagic Tenerex frame converter
• 2x Wohler VMDA-4 audio monitors
• IFB Plus Model 2 ifb system
• Sony quad analog monitors
• Blackmagic 16 Smart Videohub
• Extron MAV Plus Series 16-channel matrix switcher
• Ashley MX206 8ch analog audio mixer
• RTS-MCE325 user station with x belt packs and

ACCESSORIES & MISCELLANEOUS:

• Telos Link Telephone to Intercom Interface
• 2x Fostex 6301B monitor speaker
• Quintech LS Series Dual L band splitter
• Video I/O panel
• Telco 6-channel patch panel
• HWH Hydraulic jacks
• Lots of cables and accessories in rear
• NEW Spare tire
• 2x Furman 20 AVP Power conditioners
• Trip- Lite Power conditioners
• Staco 6000-watt (6kVA / 5.4kW) UPS
• Full functioning I/O panel
• ALL van maintenance records
