PRODUCTION/UPLINK - 30' 6-CAMERA EQUIPPED

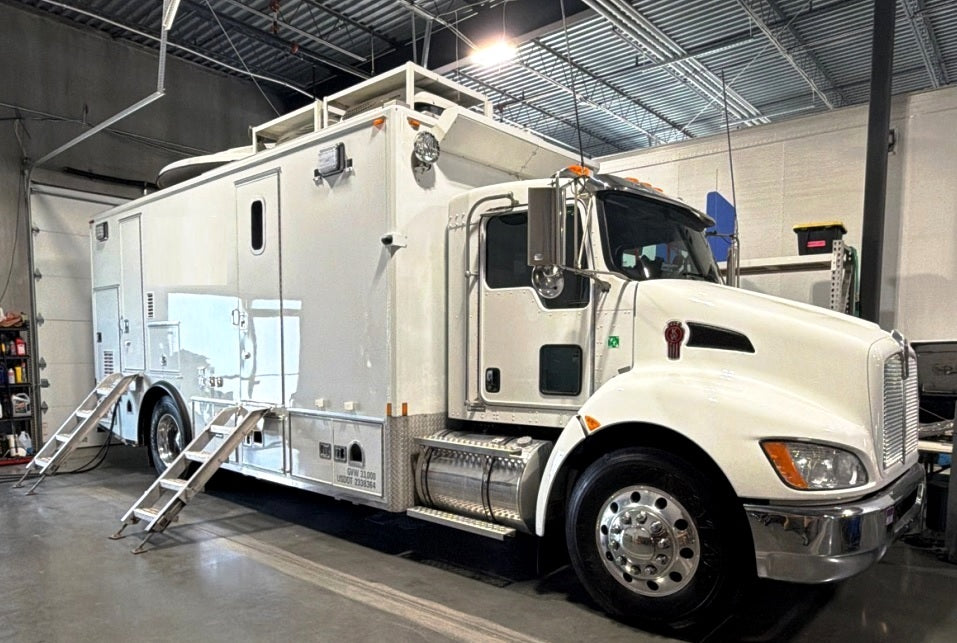

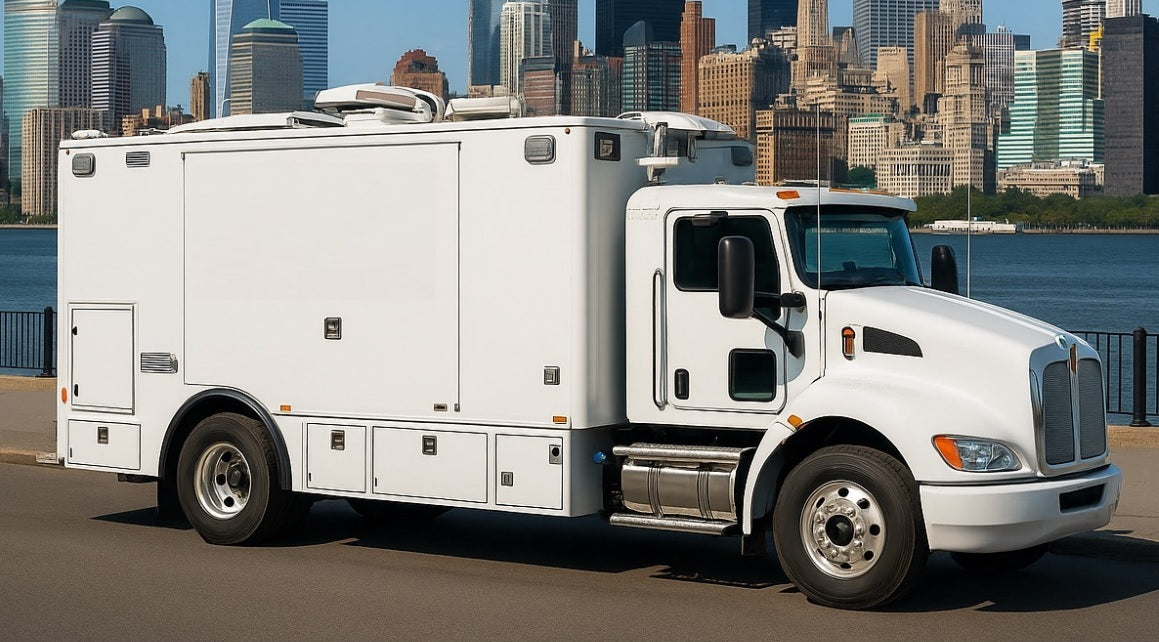

2019 30' KENWORTH PRODUCTION/UPLINK 6-CAMERA EQUIPPED TRUCK

TRUCK SPECS:

• 2019 Kenworth T370 Box Truck
• Gross Weight 54,000 lbs
• Truck Length: 30 Feet
• Box Length: 20 Feet (Comfortably holds 6 personnel)
• Mileage: 171,205
• Kohler 20kw Generator

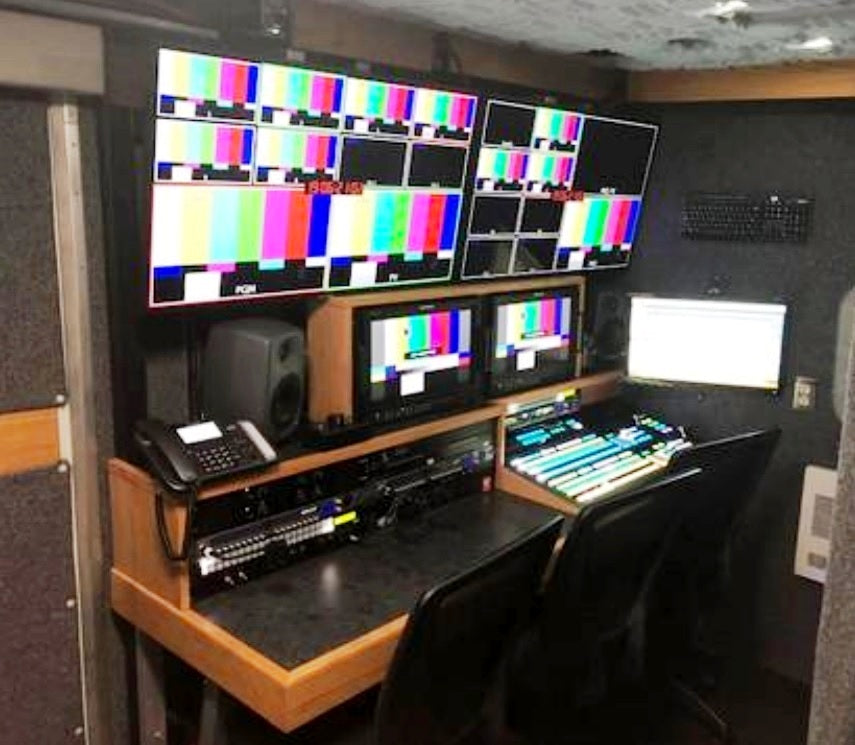

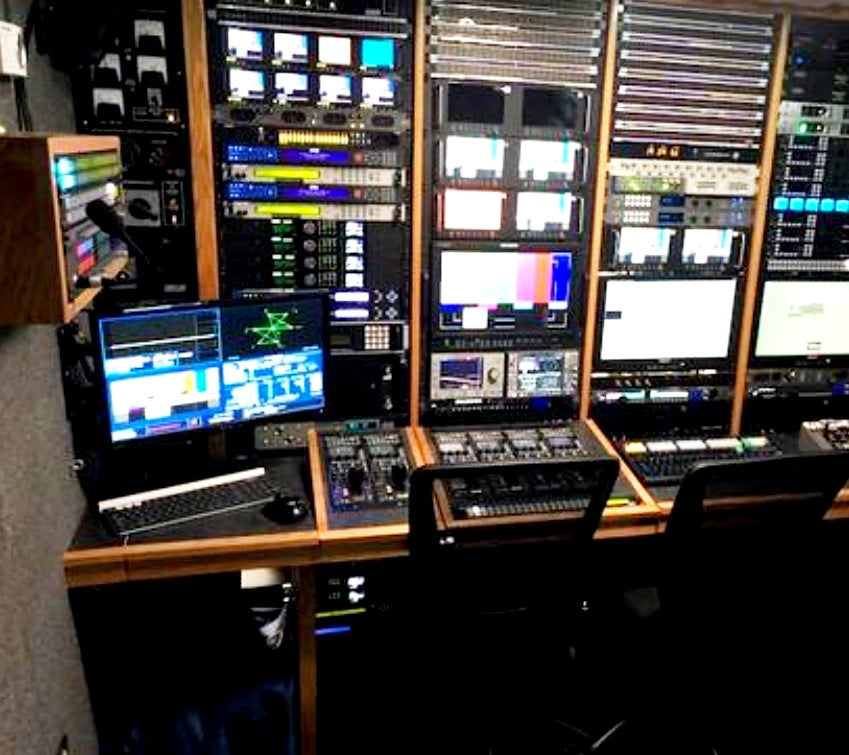

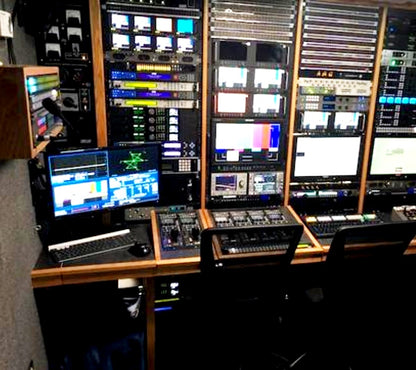

VIDEO EQUIPMENT:
1- Ross Carbonite Black switcher with 24 inputs
1- Ross Expression graphics system (3-ch)
1- Ross 72x72 router
1- Ross Abekas Mira replay (8-ch)
7- AKA KiPro racks
4- Frame Syncs
3- 17" outboard monitors

CAMERA EQUIPMENT:
6- Sony HSC-300RF SMPTE fiber camera head
6- Sony HSCU-300RF CCUs
6- Sony RCP-1500 remote control panel
3- Sony HDFV-L77 7" studio VF
1- Sony HDVF-C950W 9" studio VF
6- Sony HDVF-L10 3.5" color LCD eng VF
6- Sony HDCE-100 Sheds
2- POV cameras
2- Canon XJ72x9.3BIEIESD-BB lenses w/ IS &d full servo lens
controls
5- Fuji 20x8.5BERM HD lens w/ 2x
1- Fuji ZA12x4.5BERM wide angle HD lens w/ 2x
3- Vinton Vector 75 pan head
4- Heavy Duty Matthews tripod
4- ENG tripod

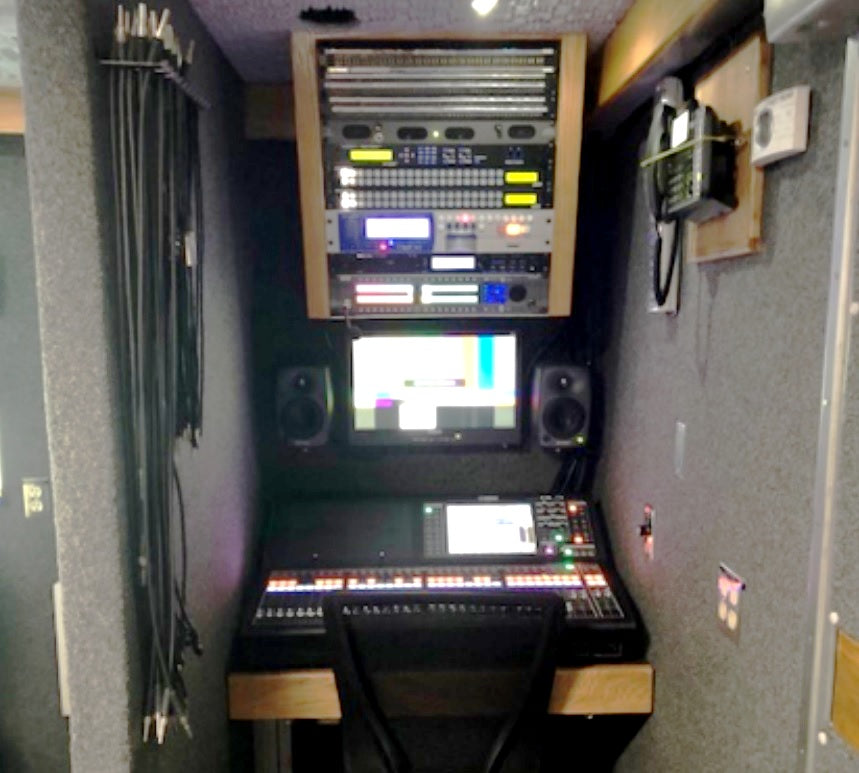

AUDIO/INTERCOM:
1- Yamaha QL-5 (32x32)
1- RTS Zues Intercom (32 port)
16-Analog ports
8- IFB channels
8- PL channels
6- RTS BP-325 DC beltpacks
4- TIFF 2000
5- Microphone Sony Lav
4- Microphone RE-50

SATELLITE UPLINK EQUIPMENT:
1- AVL 2.4-meter KU-band satellite dish
1- RCI RC3000 controller
2- TeamCast modulators
2- MCL CPI 400-Watt amplifiers
1- MCL MT32PCA2 RF phase combiner
2- Miteq U-9956-6-1k upconverter
4- Ateme DR5000 video decoders
2- Ateme CM-5000 video encoders with modulators
2- DIRECTV receivers
1- Avcom MSA-4570 spectrum monitor

CABLING:
SMPTE
12- 250'
12- 125'
6- 50'

AUDIO MULT W/ FO
2- 250' DT12
2- 150' DT12

VIDEO MULT
1- 150' 10 pair

Fiber
1- 1000' TAC4
4- 500' TAC6

RF:
None

LIGHT KITS:
2- Light kits

POWER:
208v 1-phase
100 amps
